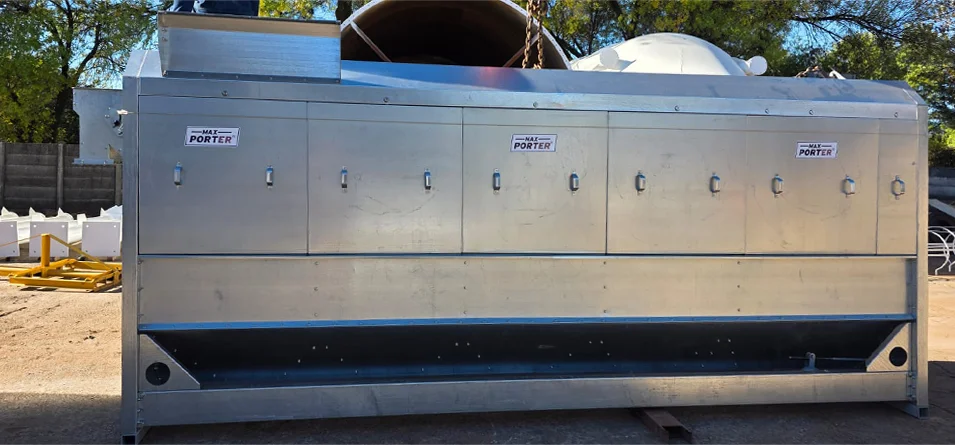

GRAIN CLEANING OPTION
PRE CLEANING (T MODEL)

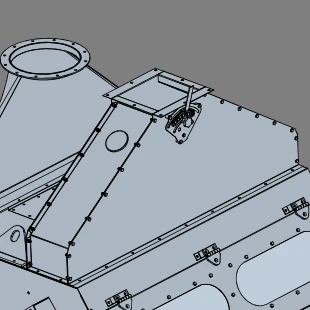

Adjustable Product Inlet

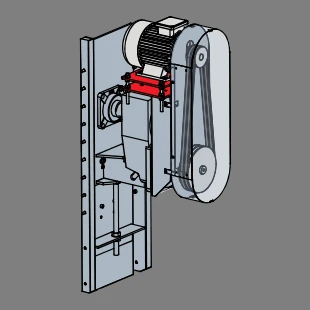

Tilt Setting

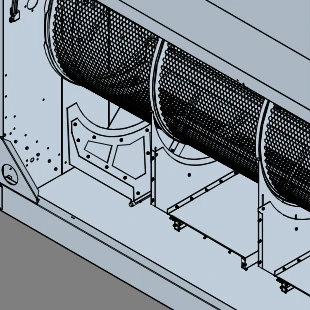

Product Separation Screen

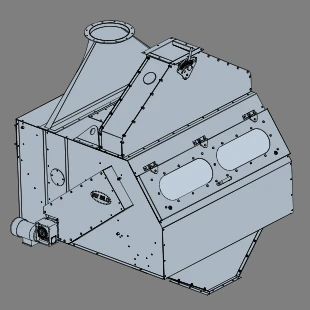

Air Channel
PRODUCT FEATURES

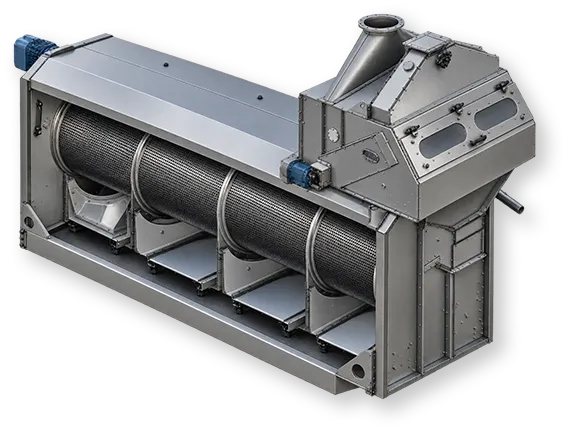

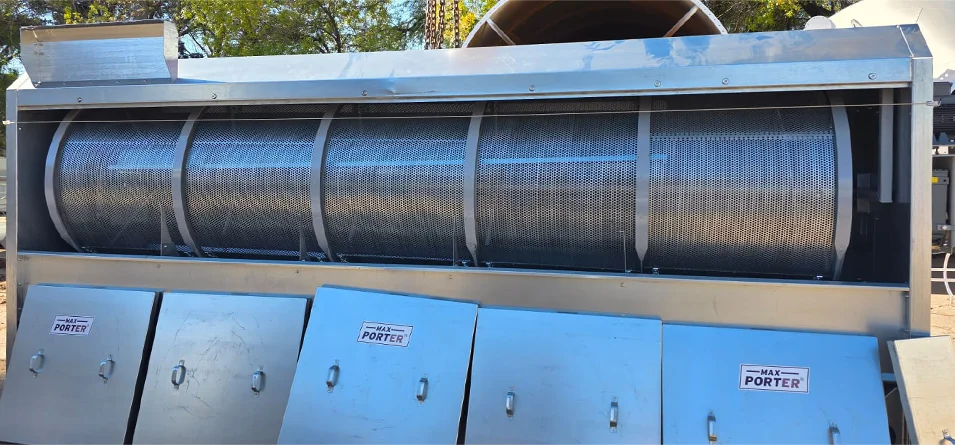

MYSILO T model grain cleaning machines consist of tiltable cylinders. Perforated sieves of different geometries are used according to grain sizes, which can be easily changed according to the type and process of the desired product.
STANDARD EQUIPMENT
- Adjustable Product Inlet
- Auger Motor
- Dust Discharge Auger
- Tilt-Adjusted Sieves
- Product Separation Screen
- Galvanized Body Motor 380 V 50 Hz IP 55
OPTIONAL EQUIPMENT
- Air Channel
- Cyclone / Jet – Pulse Filter
- Air Lock
- Chassis
- Wooden Sieve Cleaning Cylinder
- Rubber Coated Discharge Chamber
technical specification
Scroll right to view the rest of the information on the table.
| Model | Capacity (t/h) | Amount of Sieves | Sieve Area (m²) | Main Motor (kW) | Aspiration Motor (kW) | Auger Motor (kW) | Weight (kg) | Volume (m³) | Drum Diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|
| C-T312 | 50 | 3 | 9 | 3,00 | 4,00 | 0,75 | 2.162 | 24 | 1.200 |
| C-T412 | 100 | 4 | 12 | 4,00 | 5,50 | 0,75 | 2.400 | 29 | 1.200 |
| C-T512 | 150 | 5 | 15 | 5,50 | 5,50 | 0,75 | 2.550 | 35 | 1.200 |
| C-T416 | 200 | 4 | 18 | 5,50 | 7,50 | 0,75 | 3.350 | 30 | 1.600 |
| C-T516 | 300 | 5 | 25 | 11,00 | 11,00 | 0,75 | 2.650 | 37 | 1.600 |

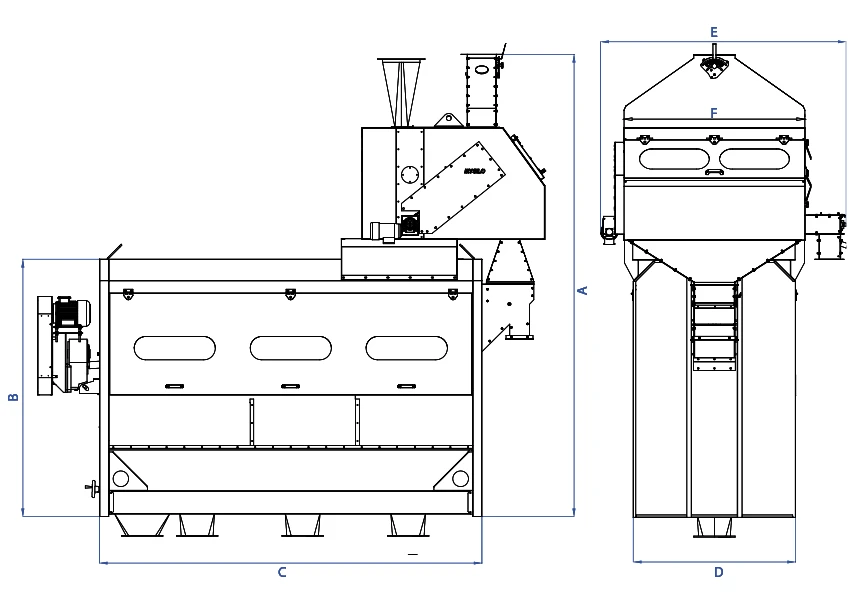

Dimension chart
Scroll right to view the rest of the information on the table.
| Model | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| C-T312 | 3.980 | 2.215 | 3.300 | 1.400 | 2.115 | 1.560 |
| C-T412 | 3.980 | 2.215 | 4.200 | 1.400 | 2.115 | 1.560 |
| C-T512 | 3.980 | 2.215 | 5.120 | 1.400 | 2.115 | 1.560 |
| C-T416 | 4.300 | 2.700 | 4.200 | 1.400 | 2.115 | 1.560 |
| C-T516 | 4.300 | 2.750 | 6.030 | 1.400 | 2.115 | 1.560 |
- General dimensions.
- The capacities specified in the table are the maximum values given for wheat pre-cleaning at a density of 769 kg/m³, %14 humidity and %2 impurity values.
- Pre-cleaning capacities and cleaning rates vary according to the size of the sieves and the pollution of the grain.
- Mysilo has the right to change specifications.
