VICRO BULK is a specialist manufacturer and supplier of industrial bulk storage and handling equipment, proudly serving clients across South Africa and beyond.
PROJECT IMAGES
PRODUCTS
CONVEYING EQUIPMENT
AUGERS
CHAIN CONVEYORS
BELT CONVEYORS
BUCKET ELEVATORS
GANTRIES
DOWNPIPES/DIVERTERS

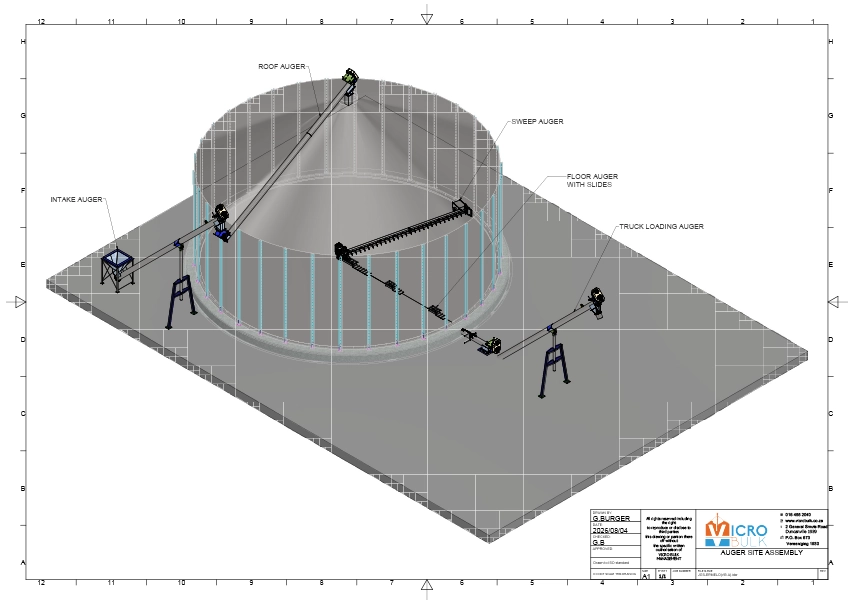

AUGERS
DIAMETER
Ø 102 | Ø 165 | Ø 220 | Ø 273 | Ø 324
Rigid – Mild Steel – Trough or Pipe
LENGTHS
To customers requirements
DRIVE OPTIONS
380V 4P 3Phase Squirrelcage motors
V-Belt driven speed reducer gearbox
VSD – forced cool motors
Variable pitch length
FEATURES
Adjustable motor base
Red Oxide Primer finish

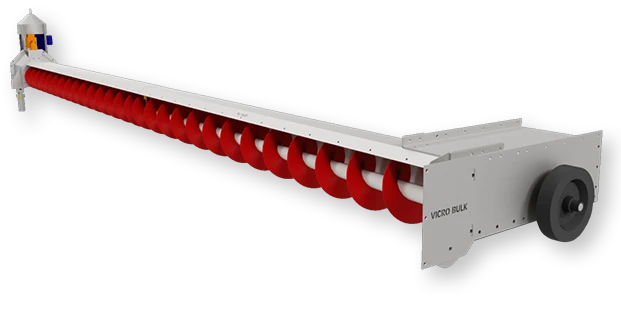

GRAIN SILO SWEEP AUGER
- Robust design that does not require removal from the silo when filling the silo
- Reduced labour cost to remove stored grain from the silo
FEATURES
- Ø220 – Fully galvanised
- 250 o/d x 50mm polyurethane plain bore wheel
- Worm Gear drive & Motor
EXCLUDED
Electrical cable & switch

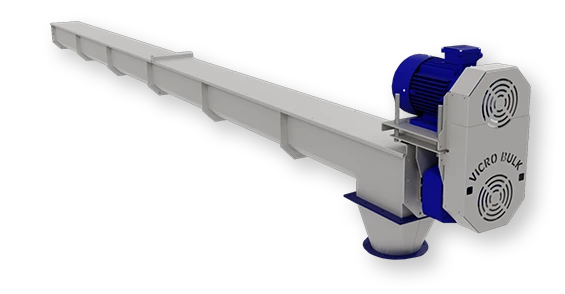

TROUGH AUGERS
- Modular design available in various sizes
- Up to 100ton/hr product delivery
- Reduced wear when compared to conventional augers
- Accessible spiral without removing spirals

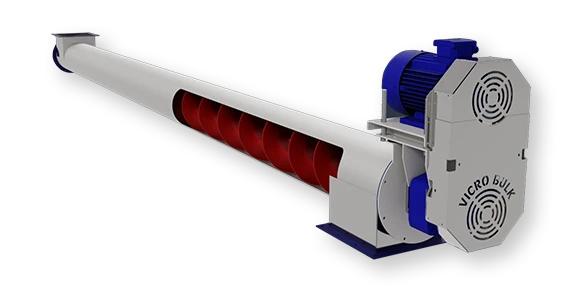

PIPE AUGERS
- Up to 100ton/hr product delivery
- Inclination angles up to 45deg
- Available in lengths up to 13m
CONVEYORS

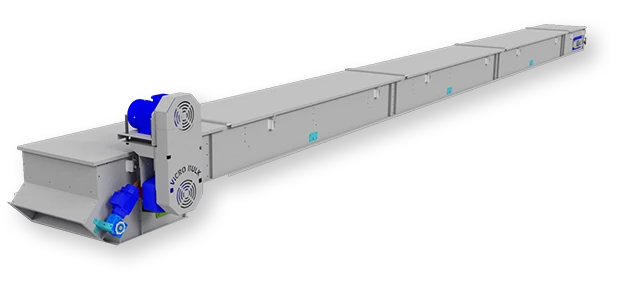

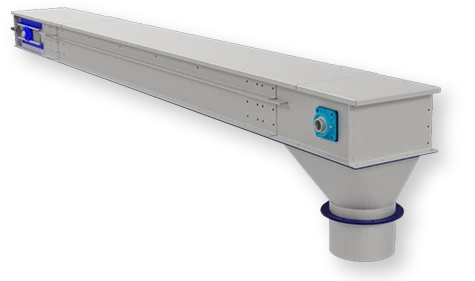

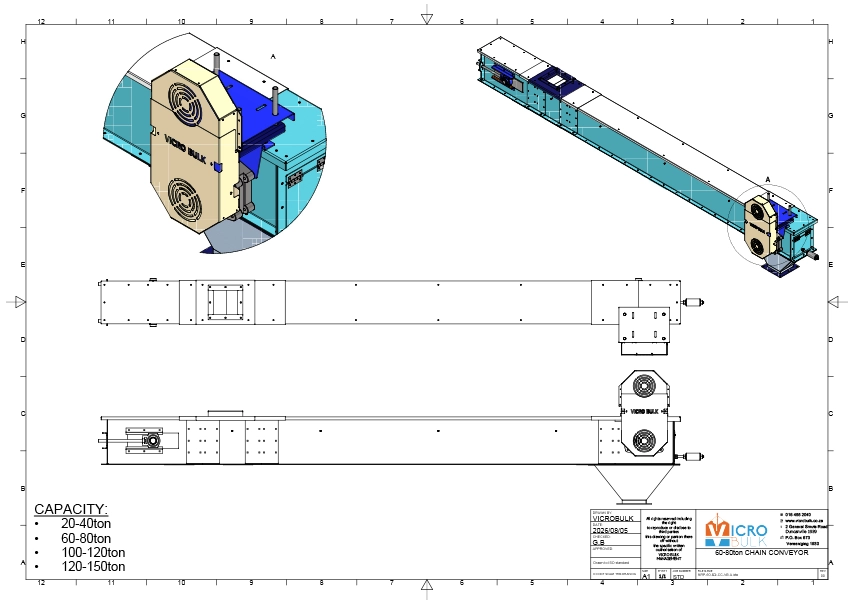

CHAIN CONVEYORS
- Ideal for silo loading and unloading
- Up to 150ton/hr product delivery
- Available in various sizes
- Fully enclosed design
- 7500 LBS Scraper Chain
- Capacities available – 20 T/hr to 120 T/hr
- V-Belt driven Speed Reducer gearbox
- Tandem systems used when length exceeds 30 meters
OPTIONAL
- Hand operated sluice gates
- Pneumatic sluice gates
- Electric operated sluice gates

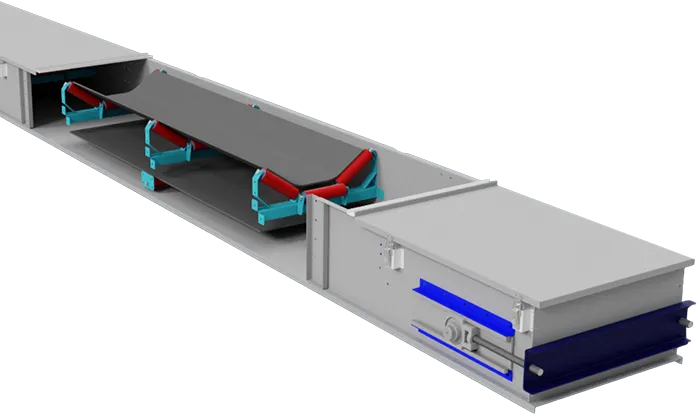

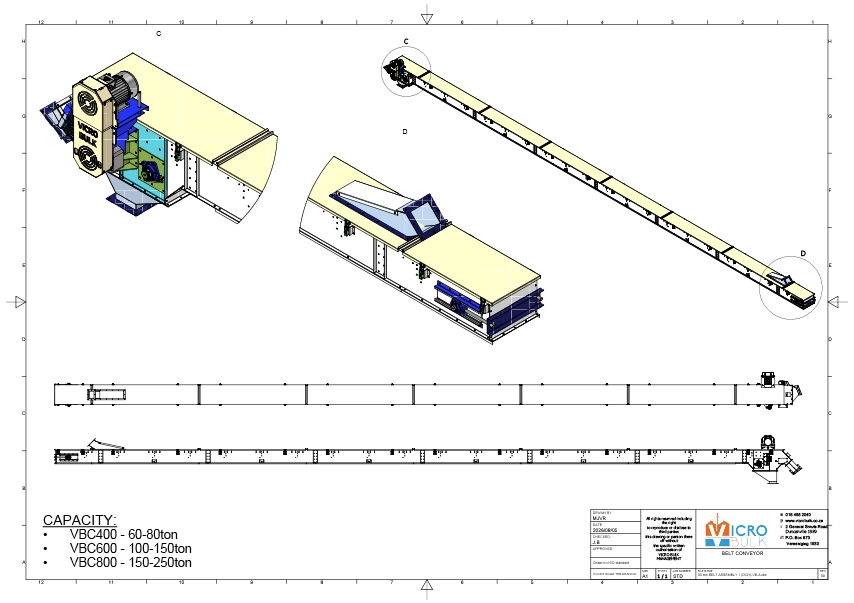

BELT CONVEYORS
- 75% more energy efficient
- Reduced material breakages
- Up to 250ton/hr product delivery
- Fully enclosed design

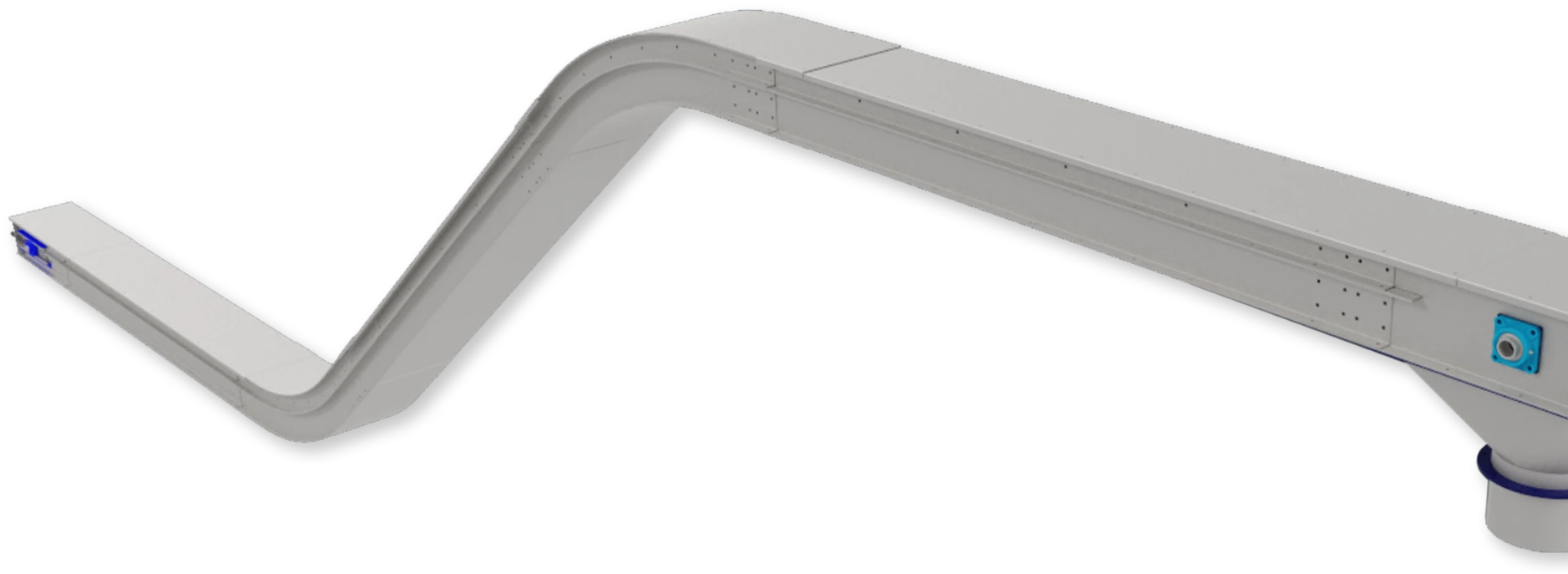

GOOSENECK CHAIN CONVEYORS
- Up to 150ton/hr product delivery
- Ideal for silo unloading
- Available in various inclination angles
- Fully enclosed design

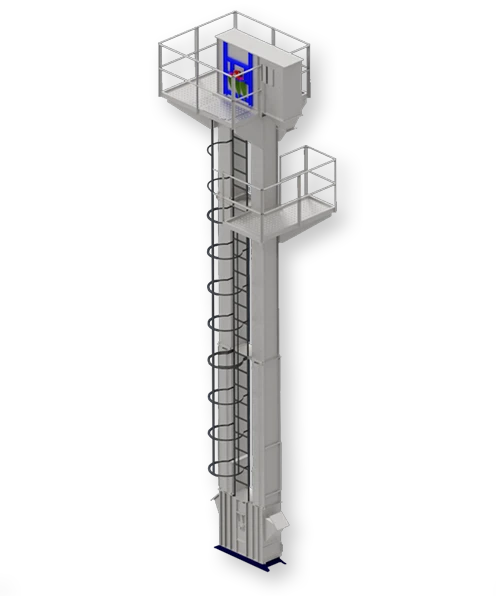

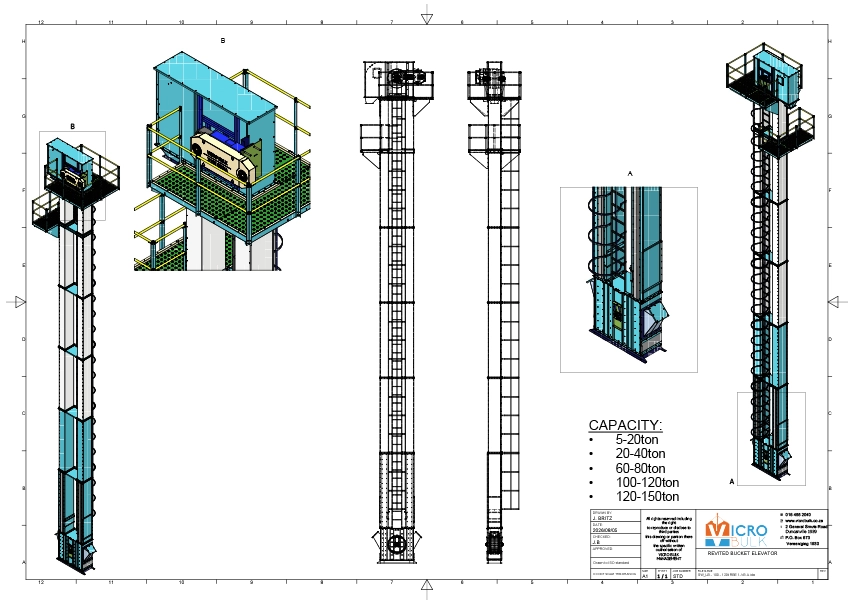

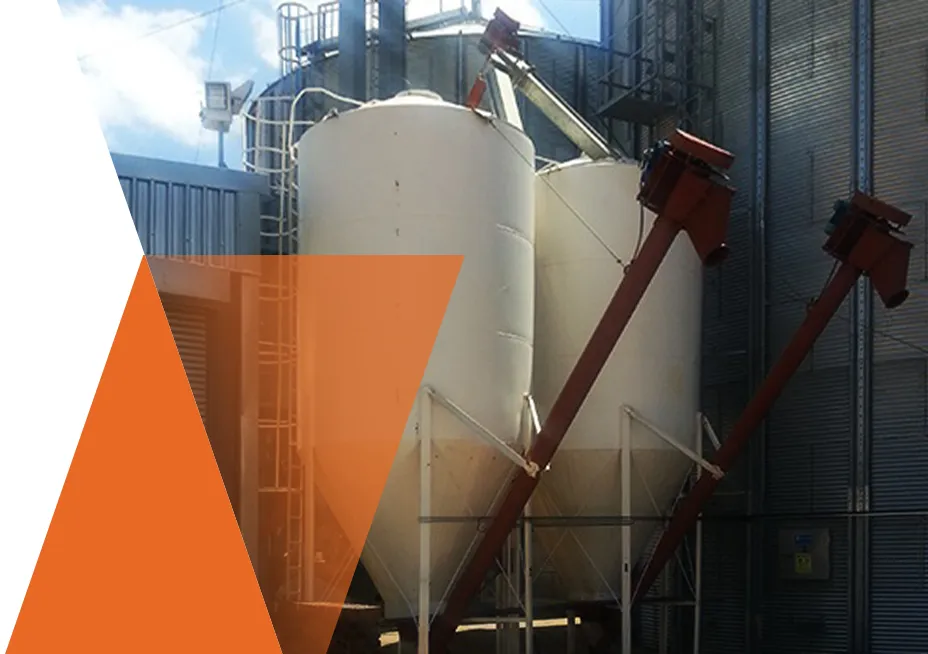

BUCKET ELEVATORS
- Up to 150ton/hr product delivery
- Modular design
- Adaptable height
- Fully galvanised material used on all parts
OUTLET HEIGHT
7 Leg – 22m
9 Leg – 28m
ANY OTHER HEIGHTS AVAILABLE
Support structure recommended for elevators exceeding 30 meter
FEATURES
Manufactured from Z275 Pre-galvanised material
Class 1000 PVC Solid Woven Belts

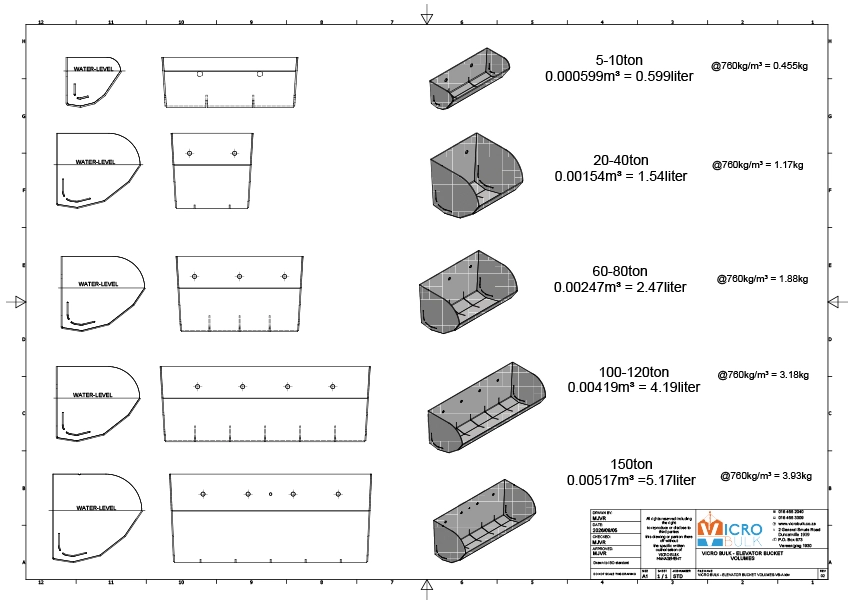

Mild steel buckets
V-Belt driven Speed Reducer gearbox
DOWNPIPES AVAILABLE
240mm from 100 ton per hour
300mm (up to 150ton/hr)
350mm (up to 250ton/hr)
HDP Anti-static liners optional
ELEVATOR PRICE
INCLUDES
- Gearbox & Motor
- 1 x Service Platform
- 1 x Worksplatform
- Anchoring cables
EXCLUDES
- Installation
- Delivery
- Electrical reticulation
- Diverters & Downpipes
- Resting / Step-of platforms
- Anchor poles & structures (if required)

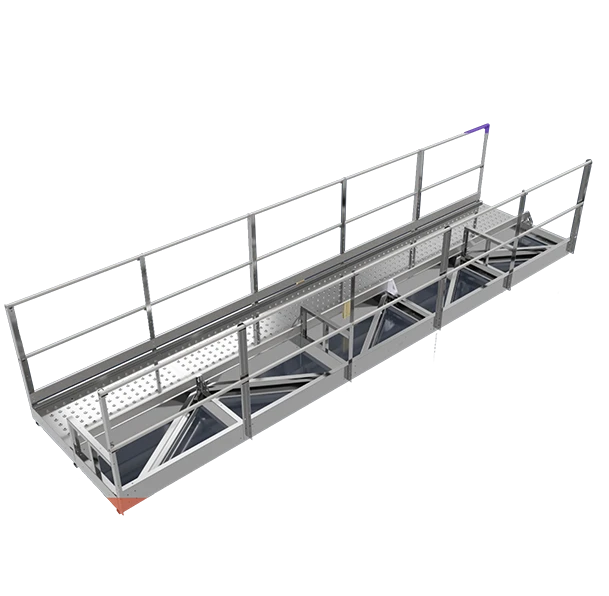

GANTRIES
- Modular design
- Various section lengths available
- Fully galvanised material used on all parts
- 1370-1810mm Wide
- 600mm walkway – non-slip
- Optional roof structure
- Fully galvanised
- Manufactured to clients lengths and capacity requirements
- 1370-1810mm Wide
- 600mm walkway – non-slip
- Optional roof structure
- Fully galvanised
- Manufactured to clients lengths and capacity requirements

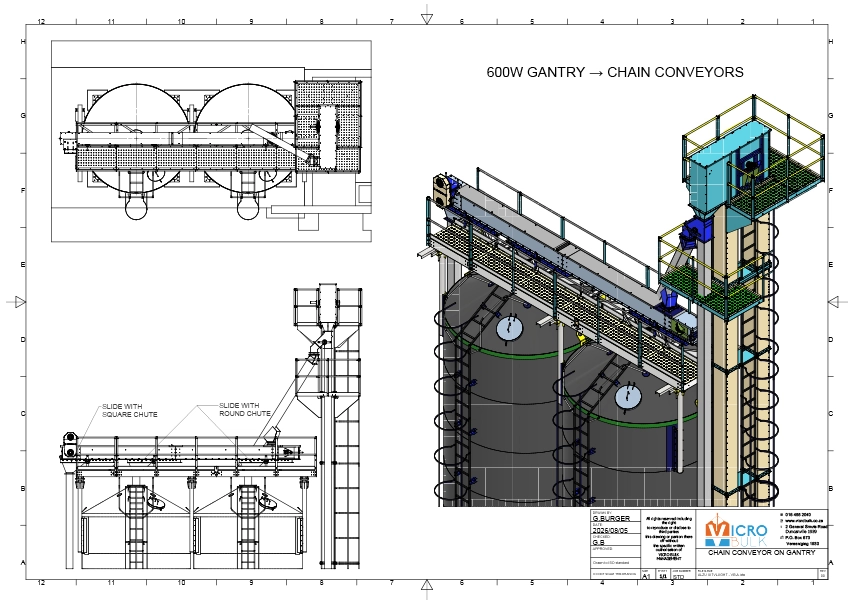

GANTRY WITH CHAIN CONVEYORS

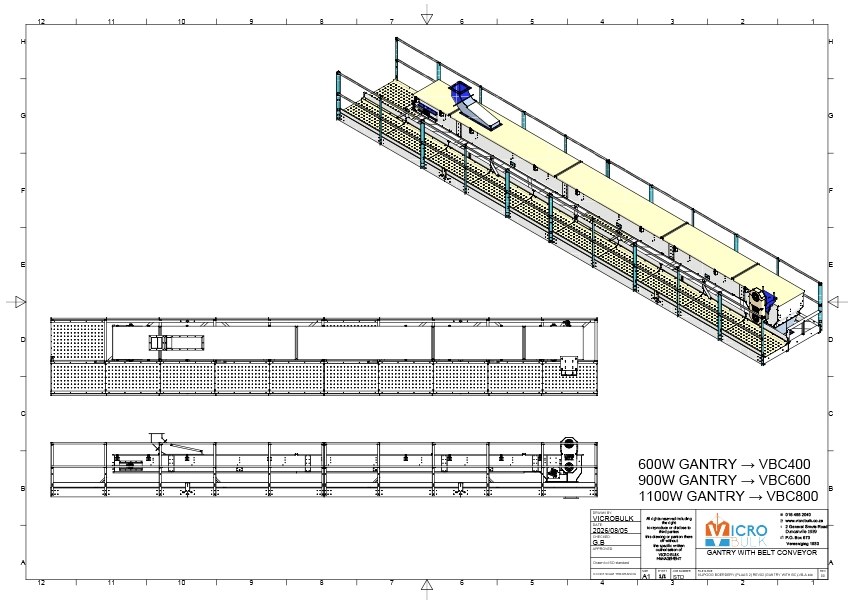

GANTRY WITH BELT CONVEYORS

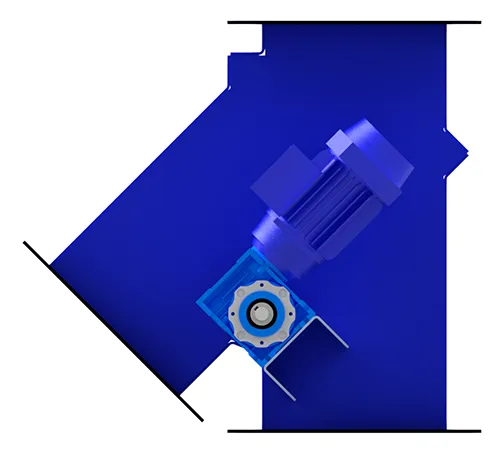

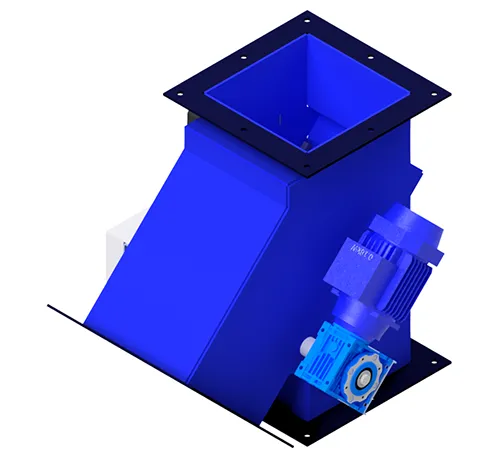

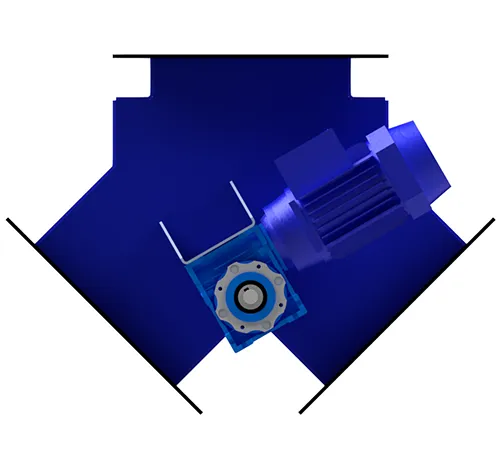

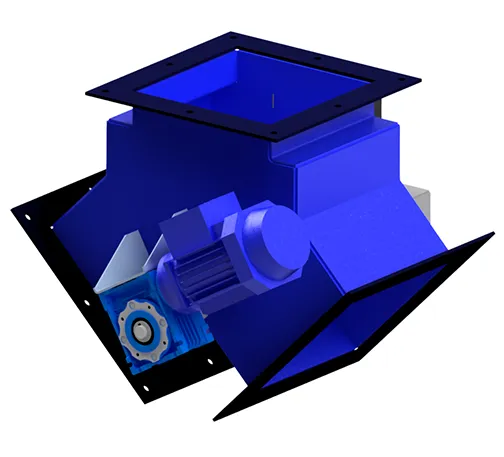

DIVERTERS
FEATURES
-
Robust design to increase service life
-
Available in various sizes:
-
205mm (UP TO 80ton/hr)
-
240mm (UP TO 120ton/hr)
-
300mm (UP TO 150ton/hr)
-
350mm (UP TO 250ton/hr)
-
-
Available in various options:
-
2-WAY 45deg
-
2-WAY 90deg
-

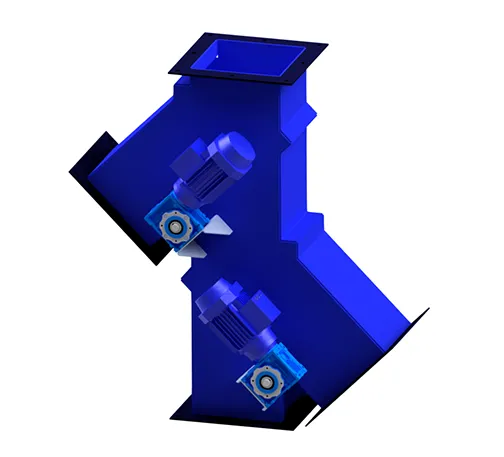

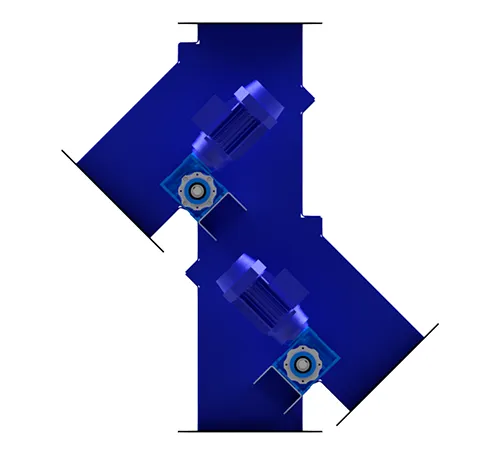

3-WAY
-
-
All diverters are available in:
- Manual
- Pneumatic
- Electric Options

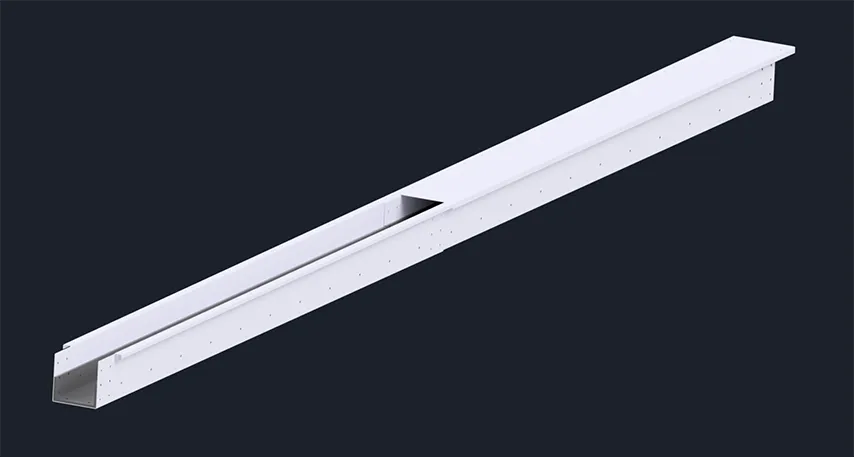

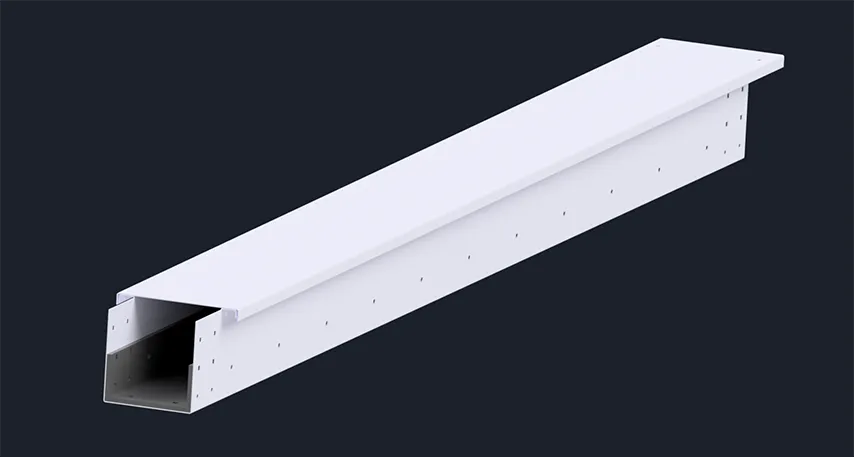

DOWNPIPES
FEATURES
-
Modular design to facilitate easier installation and replacement
-
Available in various sizes:
-
205mm (UP TO 80ton/hr)
-
240mm (UP TO 120ton/hr)
-
300mm (UP TO 150ton/hr)
-
350mm (UP TO 250ton/hr)
-
- Downpipes come in lined and unlined options
- Liner option : 10mm HDP liner to optimize flow and extend service life
